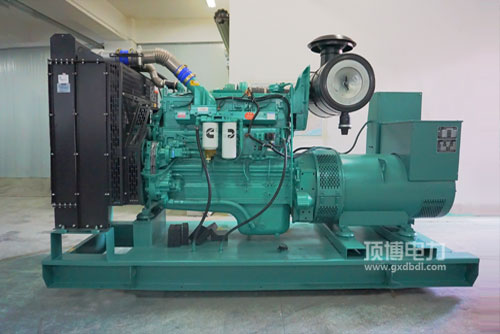

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯并网发电用启思想气油经济增长性好: 品质可靠的气油操作设备，才有的STC、ESTC 等级分类操作设备，非常规来设计的活塞式顶端点燃室，直流电压喷射气油，彻底的雾化吸入，点燃彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用发起机瞬态特性市场大的: 精致的发起机布局的设计，互相配合康明斯独家的EFC系统化，设定计算精度就越高，加载事件快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯火力发电用汽车发倾向升输出功率高: 一体化制定主体工程.看上去布置图合情合理，作业平缓。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机种 QSNT. QSK19. QSK38. QSK50无法国内 非路面第3时期及美国Tier2. Tier 3排放标准相关法律法规需要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件必须性好， 发起机运转及维护维修维修便捷性，成本费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

效率条件 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L自己的外观长宽高 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净服务质量 Dry Weight   940kg

224-310KW康明斯电站用打着机的优点和缺点：占地小， 文件压缩比低， 防雨百叶空气中调温，利于开机，中国移动车载式电压的好的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起动因材质	选用公率(kW)Prime Power	后备电源效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
